- Chemical water treatment is critical to all steam and hot water applications
- Helps protect steam or hydronic equipment and piping system against corrosion and scale
- Packaged unit for easy installation
- Complete standard packaging provides lower installation costs and easy installation
- Alternative materials of construction: product selection to match system requirements
- Custom pump selection: piston or diaphragm
- Direct drive, clamp mounted agitator allows ability to mix and dilute powdered materials and provides ease of maintenance
- Adjustable pump parameters allow ability to adjust pump output based upon system requirements and helps control chemical cost

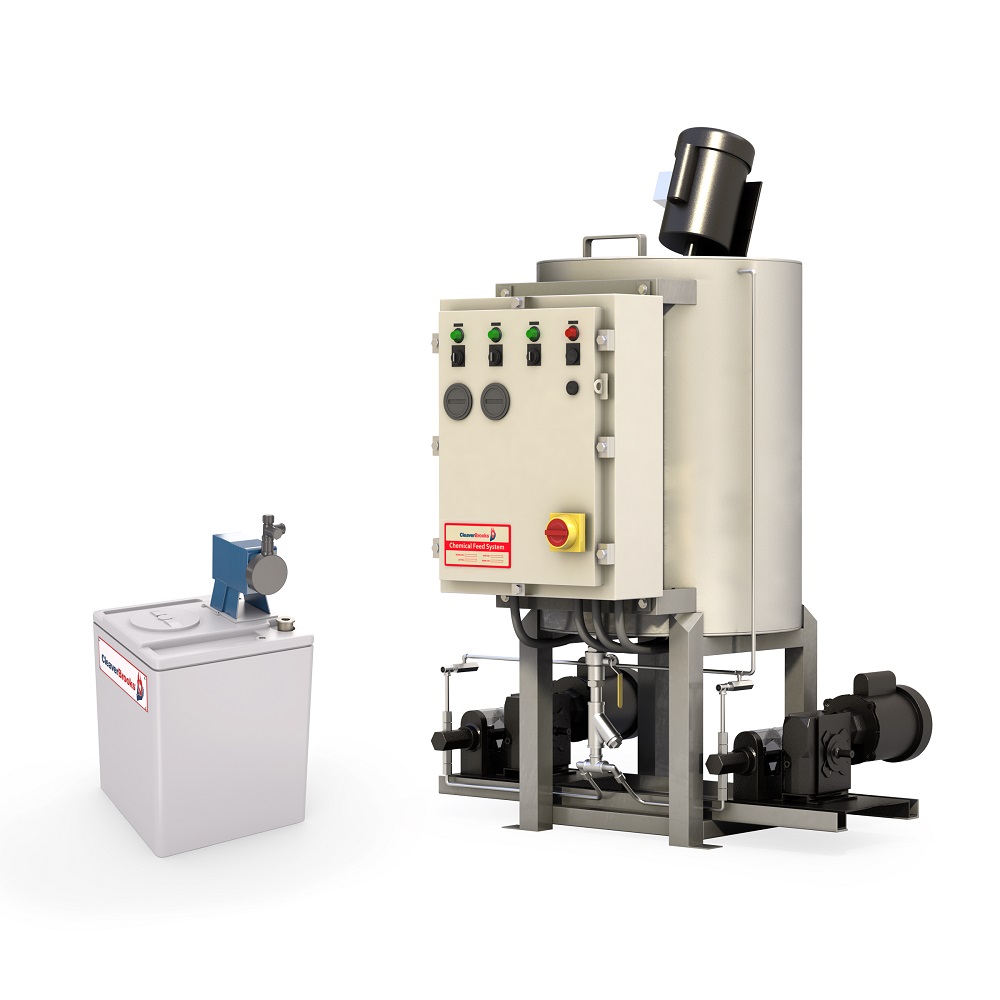

Cleaver-Brooks chemical treatment systems treat boiler feedwater, as well as steam and condensate where an extra measure of protection against corrosion and scaling is required. Automatic chemical treatment systems are available for single or multiple-boiler installations.
- Steam and Hot Water Applications
- Sized from 10,000 to 1,000,000 grains capacity
- Flow rates from 2 to 500 gpm
- Tank sizes range from 9″ to 72″ diameter
- Compatible with all boiler applications
Dealkalizers can remove more than 90% of the bicarbonate alkalinity in a softened water supply. High alkalinity contributes to boiler foaming and carryover as well as excessive blowoff rates. Besides improving water chemistry in the boiler, lowering alkalinity reduces formation of carbon dioxide in the system, which is the major cause of condensate piping corrosion. Cleaver-Brooks Dealkalizers are available in FRP plastic or carbon steel lined tanks designed to NSF standards. These Dealkalizer systems include twin alternating tanks with automatic controls to maintain a continuous supply of dealkalized water. A caustic injection metering pump and brine tank are also included as standard.
- Steam and Hot Water Applications
- Sized from 50,000 to 1,000,000 grains capacity
- Flow rates from 2 to 800 gpm
- Tank sizes range from 10″ to 120″ diameter
- Tanks of FRP plastic or steel
- Filter systems available to fit any boiler application
Filtration systems remove particulate and dissolved impurities from the make-up water. Cleaver-Brooks Series FBF and FBS water filters can treat for sediment removal, iron, manganese, hydrogen sulfide removal, acid neutralization, and chlorine removal. Raw water analysis can easily determine the need for special filter equipment for removal of impurities. The cost of these systems is quickly recovered by eliminating the need for frequent equipment cleaning and servicing, inefficient performance, damage to system components and premature equipment failure. Both models FBF and FBS are automatic backwashing media filter systems with control timers and valves. The FBF series are FRP resin tanks certified to NSF 44. FBS water filters feature carbon steel media tanks with NSF 61 epoxy tank lining. Combination of tanks, exterior piping and skid mounting options available.
- Steam and hot water applications
- Sized from 20,000 to 1,500,000 grains exchange capacity
- Flow rates from 2 to 450 gpm
- Tanks of FRP plastic or steel
- Compatible with all boiler applications
Cleaver-Brooks ion exchange water softeners remove hardness, preventing scale buildup on heat transfer surfaces while maintaining peak boiler efficiency. Removing hardness also reduces the need for expensive chemical treatment to control scale. Cleaver-Brooks water softeners are available in package design for virtually any commercial or industrial application. A water softener is recommended whenever raw hardness exceeds 1 ppm. Water softeners are available for boilers of all sizes, including multiple boiler applications, steam or hot water. Models SMR and FMR Available in single-, twin- or triplex tank designs and include resin tank(s), brine tank, face-piping, diaphragm valve nest and cycle controller. They feature carbon steel tanks with epoxy lined interiors and utilizes water-activated diaphragm valves and an electronic controller.
Models FSE and SSE Available in single, twin or triplex tank designs and include resin tank(s), brine tank, resin, piping, multi-position top-mounted piston valves, flow meters and electronic demand controller. FSE model has plastic tanks for easy installation. SSE model has steel tanks with top-mounted valves. Features:
- Sized from 20,000 to 1,200,000 grains exchange capacity
- Flow rates from 8 to 350 gpm
- Tank sizes 9″ to 48″ diameter standard, larger available
- Operating temperatures: 40° to 100°F
- Spray-lined steel or FRP plastic tanks
- Optional skid-mounted and pre-piped, pre-wired systems
- Optional ASME code-stamped tanks
Model CRS Crossover twin alternating systems with plastic tanks and a single top-mounted valve that controls both tanks. Includes resin tanks, brine tank, single valve with CRS controller and interconnecting piping. They provide a continuous supply of softened water with one tank in service and one tank in either regenerating or in standby. Solid-state CRS controls provide simple, reliable operation. Features:
- Sized from 15,000 to 450,000 grains exchange capacity
- Flow rates from 12 to 45 gpm
- Tank sizes 7″ to 30″ diameter
- Operating temperatures: 40° to 100°F
- Water meter for automatic regeneration
- Optional skid mounted
