Cleaver-Brooks ClearFire-CE
Compact, high-mass, fully condensing hydronic boiler.
Cleaver Brooks SwitchFire
Designed for use in variable flow primary systems, the SwitchFire boiler is a high-mass..
- Fully condensing high-mass firetube boiler
- Dual fuel condensing
- Gas only condensing
- Industrial design
- 6000, 10,000, 12,000 MBH
- Standard less than 30 ppm NOx (natural gas)
- Up to 98% efficiency
- 5:1 fully modulating turndown
- Sub 30 ppm NOx standard, lower emissions available
- No minimum return water temperature for maximum efficiency
- Dual fuel and gas only capabilities mean the SwitchFire® is well suited to a variety of applications
Designed for use in variable flow primary systems, the SwitchFire boiler is a high-mass, fully condensing boiler constructed of 316L stainless steel. The SwitchFire boiler is designed to handle variable flow pumping, with a low waterside pressure drop and large water volume. With its dual fuel (natural gas and #2 oil) burner capabilities, the SwitchFire is well suited for healthcare applications and other facilities that require redundancy with alternate fuels. This unit integrates Cleaver-Brooks leading heat exchanger, featuring stainless steel EX rifled tubes, with proven burner and controls technology for a robust, reliable, efficient product. The SwitchFire’s burner design allows for efficient, low emissions operation when firing both gaseous fuels and #2 oil.
The Avenger is a two-pass counter flow fire tube commercial boiler for hydronic heating and hot water supply. It features thermal efficiencies of up to 98% and turndown ratios of up to 25:1. Flow switch, pressure relief valve, low gas pressure switch and flame failure contacts are standard on every Avenger. Attributes include:
- 160 PSI working pressure
- Fully welded construction with stainless steel pressure vessel, tubes, tube sheets and combustion chamber
- Modulating burner with up to 25:1 turn-down
- ASME “H” and “HLW” stamped heat exchanger
- Operating pressure as low as 12 PSI
- Natural or propane gas operation
- Radial fired knitted fiber stainless steel burner
- Variable frequency drive (VFD) modulation
- Modbus RTU standard, Protocol Translator available for other communication needs
- Low NOx operation
- Sealed combustion
- Return water temperatures as low as 40°F
- Inherent O2 trim
- 1 to 1 air/gas ratio control for proper combustion across entire modulation range
- Rear Connections; water, gas, vent and electric
- Local/Remote switch for building management, remote modulation and set-point control
- SOLA Controller featuring cascade controls- lead lag up to 8 boilers on a single system
DynaFlame models range from 500,000 BTU to 6 million BTU. All are available in non-condensing, near-condensing or fully condensing modes. The primary heat exchanger is available in copper/cu-nickel or stainless steel. Flow switch, pressure relief valve, low gas pressure switch and flame failure contacts are standard on every DynaFlame. Attributes include:
- Single point input adjustment for controlling air and gas
- 1 to 1 air/gas ratio for perfect modulation throughout
- Advanced digital control system with pin point accuracy
- Proven hot surface ignition with soft start, rumble free operation
- 4-20mA for setpoint or modulation control
- Proven pilot ignition on models above 3 million BTU/hr
- 0-10 VDC Converter (must be specified)
- Lead lag capability up to 8 boilers
- DHW sensor (domestic only) and system sensor (heating only)
- Modbus RTU communication
- Direct ignition up to 2.5 million BTU/hr
- Stainless steel secondary heat exchanger (condensing models only)
The Dynaforce has an efficiency rating of up to 99% and features a vertical cylindrical heat exchanger which is constructed entirely of stainless steel. The Dynaforce can be fired with either natural gas or propane. Models range from 300,000 BTU up to 5 million BTU with a turndown ratio of up to 5:1. Standard attributes include:
- 18 models available with inputs ranging from 300,000 btu/hr to 5 Mil btu/hr
- Up to 99% Thermal Efficiency
- Suitable for Category 2 and Category 4 installation
- All welded heat exchanger, 316L headers, 439 tubes, counter flow, vertical cylindrical construction
- Return water temperatures down to 40°F
- Single point input adjustment for control of air and gas
- 1 to 1 air/gas ratio control for perfect combustion across entire modulation range
- Extremely low NOx emissions (less than 9 ppm)
- Flow Switch
- Water pressure switch
- Local/Remote switch for building management, remote modulation and set-point control
- Extremely low noise level
- Stainless steel mirror finish outer jacket
- Advanced integrated Honeywell SOLA control with touch-screen interface
- Suitable for venting with PVC, CPVC or PPE plastic vent material (app. dependent)
- Cascade up to 8 individual appliances in daisy-chain formation
- Direct ignition up to 2.5 million BTU/hr.
- Proven pilot ignition for 3 to 5 million BTU/hr.
- Low gas pressure switch
- High Gas pressure switch (models 3000 through 5000)
- Inlet regulator for incoming gas pressures up to 14” w.c.
- Stainless steel burner with radial knitted fiber
- Easy access to components for maximum serviceability
- Maximum allowable working pressure of 160 psig
- Maximum allowable discharge temperature of 210°F
- Minimum gas pressure requirements of 4.5” w.c. for models 300-1000, 7” w.c. for models 1200-5000
- Main burner test firing valve
- For operation with natural gas or propane
- Flame failure alarm contacts
- 5:1 turndown ratio with a minimum 20% firing rate
- Flue temperature monitoring
Watertube Boilers
Optimal versatility in a highly efficient, compact unit.
- FLX
- FLX PM
- M5
- M5M
- Fully condensing high-mass firetube boiler
- Compact footprint
- 500 to 6,000 MBH
- Standard less than 20 ppm NOx
- Ideal for variable flow primary systems
- Standard dual-return connections
- Robust, no flow tolerant design
- High-mass design in a compact footprint, ideal for retrofit applications
- Duplex stainless steel construction
- Dual-temperature returns for additional energy savings potential
- Falcon boiler control with lead-lag capability up to 8 boilers
- Quiet operation, <70 dBA sound level at 3 feet
- Low waterside pressure drop for reduced pumping energy requirements
- Hinged burner for easy access
- Thermal shock resistant
- cULus listed

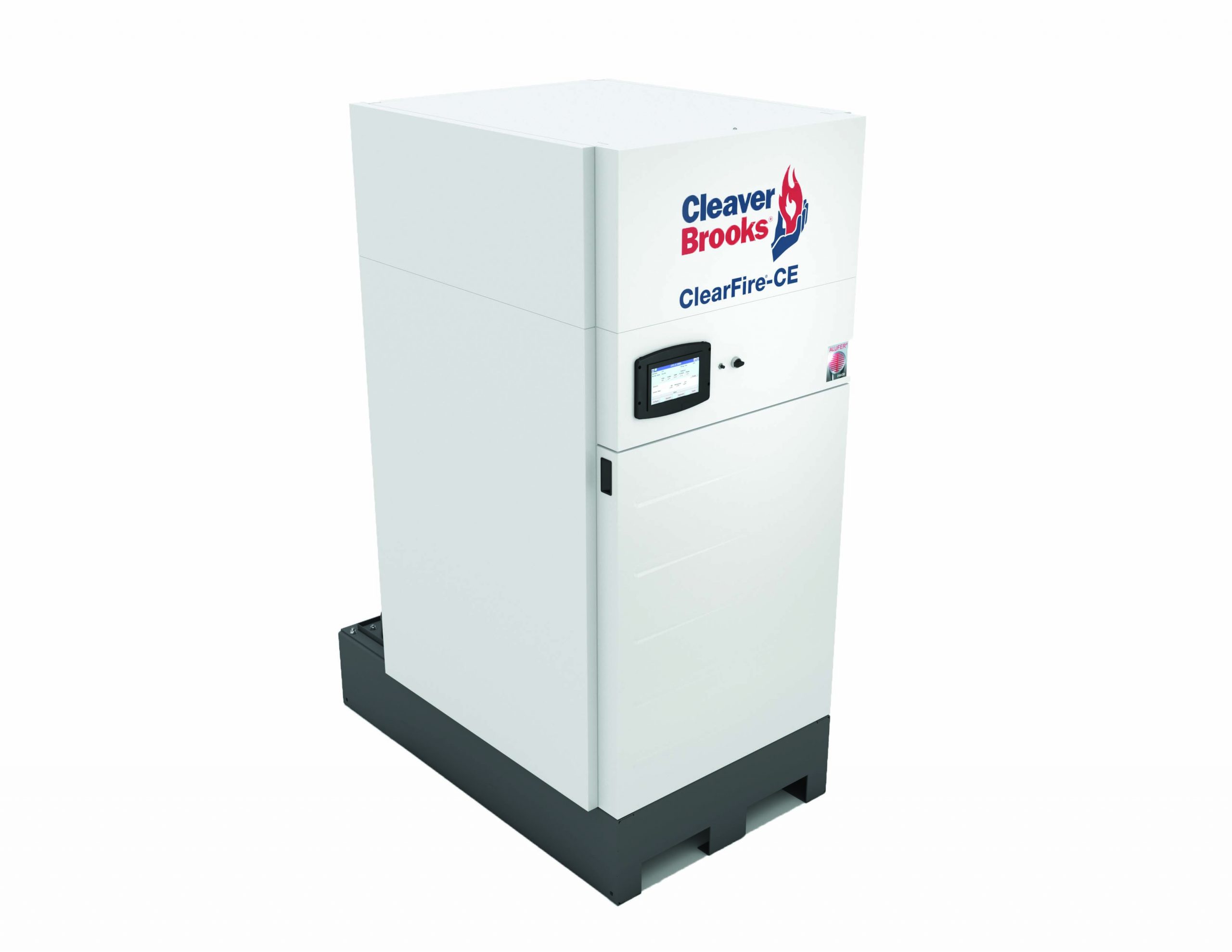

The ClearFire-CE (CFC-E) is a compact, high-mass, fully condensing hydronic boiler, capable of variable-flow pumping, allowing for maximum operating efficiency in a variety of system applications. This unit achieves up to 99% efficiency due to its high-mass firetube construction with AluFer® firetube technology. The burner design offers inherent low emissions with <20 ppm NOx standard, helping meet emissions reduction goals. The ClearFire-CE (CFC-E) is a fully assembled, high-mass firetube condensing boiler with a large-water-volume pressure vessel. The high-mass design equates to a low pressure drop, reducing pumping energy with no minimum flow requirements. The pressure vessel is also thermal shock proof, capable of high-delta-T system designs to maximize condensing and reduce flow rates. The highly effective fireside heating surface with industry leading AluFer tubes leads to superior efficiencies in all operating conditions. The modulating, premix burner control automatically adjusts the air/gas mixture for maximum burner efficiency. The linkageless burner provides fully modulating turndown without the use of complex air/fuel mixing valves. The dual-return connections have the ability to increase condensing in the boiler and raise efficiencies by 6%+ more than a single-return boiler. The ClearFire-CE provides the reliability and longevity that customers expect from Cleaver-Brooks. The CFC-E is designed to leverage the advantages of primary-variable-flow pumping systems with a small overall footprint, offering system flexibility and true operational efficiency without compromise.
- Fully condensing high-mass firetube boiler
- Large capacity, industrial design
- 4,000 to 12,000 MBH
- Standard less than 20 ppm NOx
- Fully condensing with up to 98% efficiency and 5:1 turndown
- Ultra-low emissions
- No minimum return water temperature for maximum efficiency and reliability
- Dual temperature returns for system design flexibility
- Up-front capital cost is reduced by installing fewer larger-capacity boilers
- Fully integrated system includes boiler, burner, and controls for multiple lead/lag configuration
Ideal for variable flow primary systems, the ClearFire®-LC (CFLC) is a high-mass, fully condensing hydronic boiler, capable of variable-flow pumping, allowing for maximum operating efficiency in a variety of system applications. The revolutionary larger capacity design allows the most effective installation by using fewer units as opposed to banks of smaller boilers, thus reducing capital cost, complexity, and maintenance. The ClearFire®–LC integrates Cleaver-Brooks leading heat exchanger, burner and control technology into a large capacity condensing boiler solution. The CFLC’s integrated premix burner and linkageless control work together to provide full modulation, ultra-low emissions and optimum turndown. By combining proven extended heating surface tube designs, patented AluFer® tubes and exclusive spiral tubes in a true counter flow arrangement, the CFLC delivers the capacity, efficiency and reliability previously considered unattainable.
